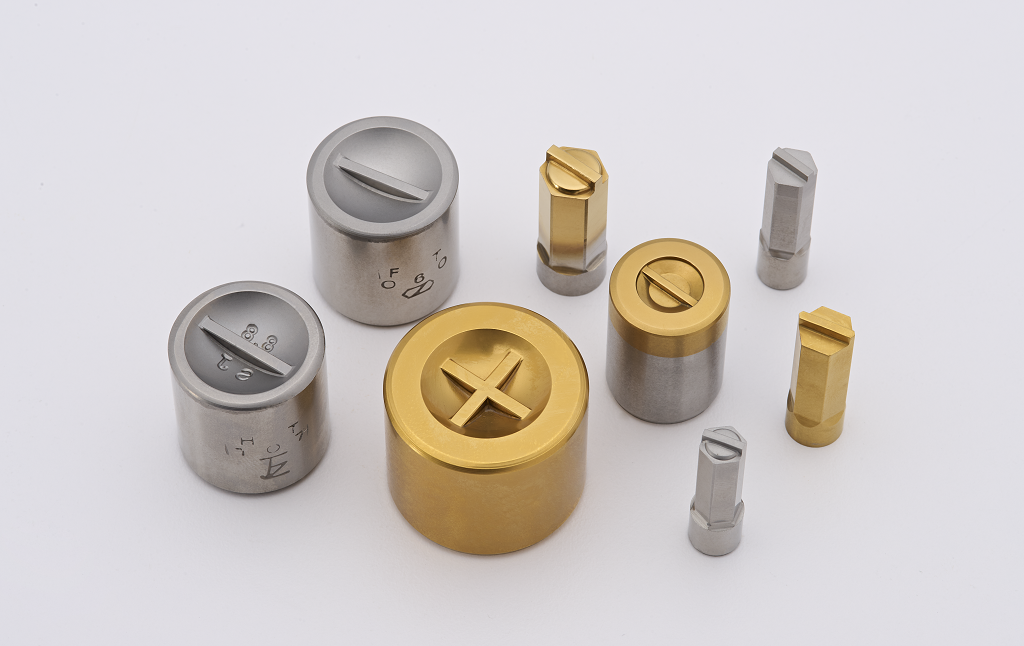

Slotted Punch

Primarily utilized for the final forming of the screw head and the precise shaping of the recess structure. It is made of high speed steel and classified as a replaceable consumable die component.

Standard	JIS、ANSI、DIN、ISO、BS、GB
Head Style	Flat head、Pan head、Oval head、Binding head、Round head、Truss head、Button head、Hex head、Cheese head or others
Material	M2 (SKH51)、M35(SKH55)、M42 (SKH59)
Diameter	●Metric Unit : 12 mm, 14 mm, 18 mm, 23 mm, 25 mm, 30 mm ●Imperial Unit : 7/16″, 9/16″, 7/8″, 1″, 1-1/4″ ●Other: 13 mm, 17 mm, 19 mm, 20 mm
Coating Type	TIN、TICN、TIALN、ALCRONA
Remark	Customized as required
