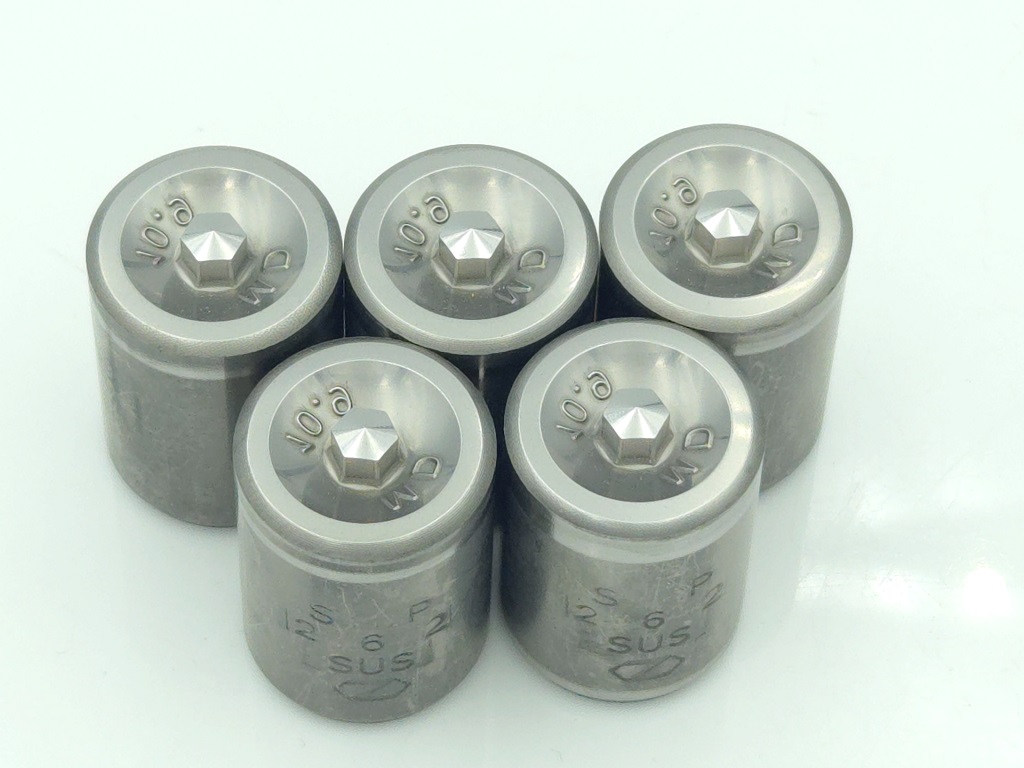

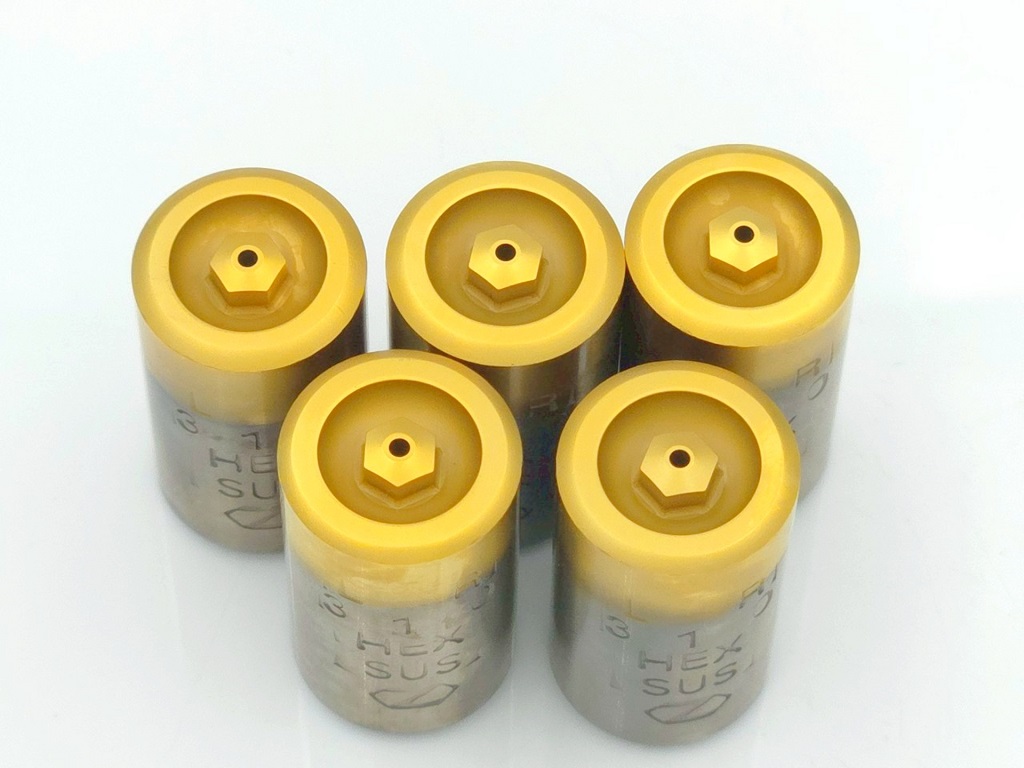

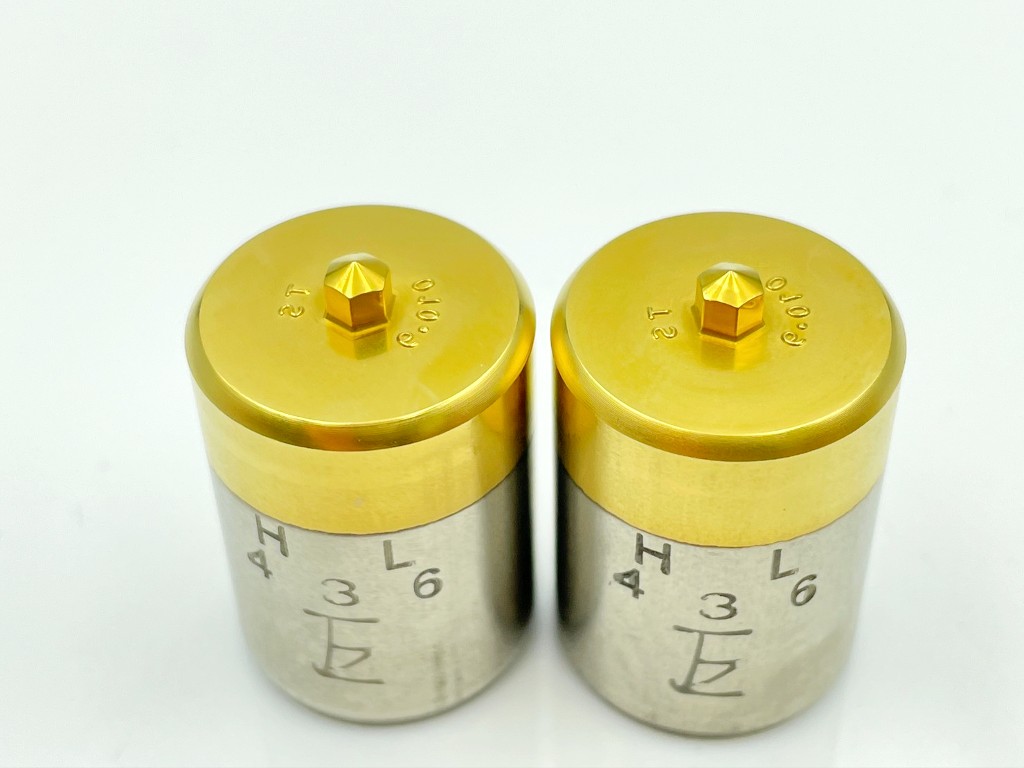

Hexagon Recess Punch

Primarily utilized for the final forming of the screw head and the precise shaping of the recess structure. It is made of high speed steel and classified as a replaceable consumable die component.

Standard	JIS、ANSI、DIN、ISO、BS、GB
Head Style	Flat head、Pan head、Oval head、Binding head、Round head、Truss head、Button head、Hex head、Cheese head or others
Material	M2 (SKH51)、M35(SKH55)、M42 (SKH59)
Diameter	●Metric Unit : 12 mm, 14 mm, 18 mm, 23 mm, 25 mm, 30 mm ●Imperial Unit : 7/16″, 9/16″, 7/8″, 1″, 1-1/4″ ●Other: 13 mm, 17 mm, 19 mm, 20 mm
Coating Type	TIN、TICN、TIALN、ALCRONA
Remark	Customized as required
